V shaped glass industrial thermometer

Model No: LT-092/LT-093
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Letin
Material: Aluminum with galvanized body,brass stem
Size: 4",6"8"
Range: -50~600C as required
type: V-shaped
angle: straight/90 angle
theory: glass thermometer
filled liquid: organic /mercury
location: Yuyao China
certificate: CE ROHS
usage: industrial

inquire
basketAdd to Basket  Edit
Previous 1 ... 11 12 13 14 15 16 17
arrow V shaped glass industrial thermometer Description
Payment & Shipping Terms
Unit Price: 3.8 USD
Trade Term: FOB
Payment Term: T/T,L/C,D/P,WU
MOQ: 100 Piece/Pieces
Means of Transport: Ocean,Air
Supply Capacity
Production Capacity: 100000pcs/month
Packing: small white box
Delivery Date: 20-30 days

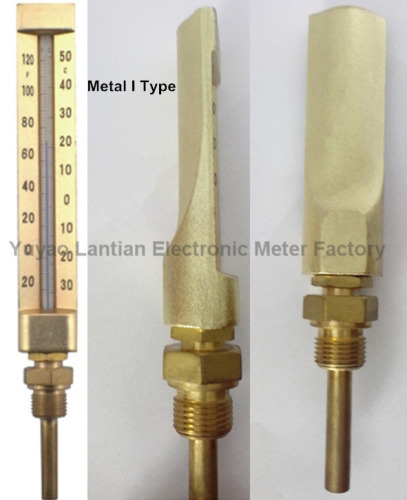

V shaped glass industrial thermometer
(1)Upper body material: Aluminum cover

(2)Surface treatment: polishing,galvanzied or painting

(3)Down body: brass or iron

(4)Upper body size:4",6",8"(110mm,150mm,200mm)

(5)Style:Straight or Angle 90

(6)Range of Temperature:-50~600oC or according to customers' requirement.

Temperature bellow 300oC,connection material is brass, higher than 300oC,it would be iron.

(7)Connection:1/2", 3/8",3/4" NBP,BSP, according to customers' requirement.

(8)Usage: This kind of thermometer can be used in gas engine of vessel,petrol or natural gas duct,heating or refrigerating equipment, accurately measurement. Strong and durable, have high resistance of concussion.

V shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometer

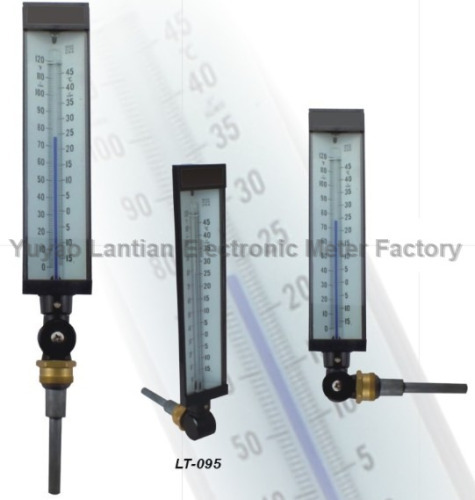

ItemLT-095
size9"/  200mm
scale℃/°F
Angle  straight/   90°/ 45°
StandardROHS/CE
Accuracy1.0
Interval10/5,minimum   division:2/1
stem length63mm   or as required
Inlet thread1/2",   3/8",3/4" NBP,BSP,or as required
filled liquidorganic   liquid or mercury liquid
Materialaluminium   shell&stem,glass thermometer rod & lens
Temperature Range20℃--180℃/ -50℃---200℃,or as required
BrandLETIN   or OEM
Usage food precessing and canning industries,the   scale is configued to indicate the temperature and corresponding pressure of   steam.
Production Category
1. Capillary thermometer(Pressure theory): plastic type,   stainless steel type, with flange type.

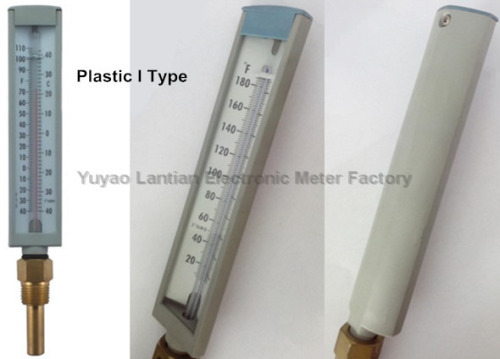

    2. V-shaped thermometer(glass rod): straight type, 90degree angle type,   vari-angle type, plastic type, stainless steel type.

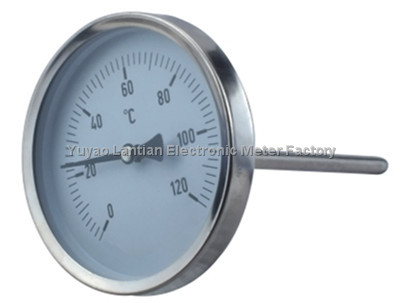

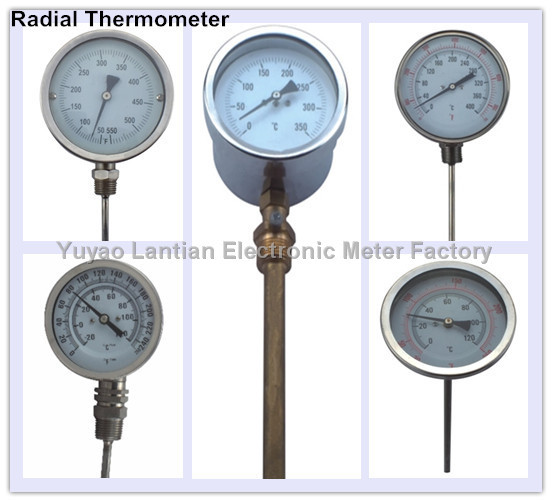

    3. Bimetal thermometer(Dial& SS case): universal type, radial type,   bottom type.
    4. Household thermometer: BBQ type, oven type, refrigerator type, digital   type, glass type, needle type.
    5. Thermomanometer: capillary type, metal type.
    6. Accessories: cover, glass rod, connection, spring tube.
  1. Capillary thermometer(Pressure theory): plastic type,   stainless steel type, with flange type.
        2. V-shaped thermometer(glass rod): straight type, 90degree angle type,   vari-angle type, plastic type, stainless steel type.
        3. Bimetal thermometer(Dial& SS case): universal type, radial type,   bottom type.
        4. Household thermometer: BBQ type, oven type, refrigerator type, digital   type, glass type, needle type.
        5. Thermomanometer: capillary type, metal type.
        6. Accessories: cover, glass rod, connection, spring tube.

  2. V shaped glass industrial thermometerV shaped glass industrial thermometer

  3. ItemLT-092-01LT-092-02LT-092-03
    size110mm150mm200mm
    stem diameterØ12mmØ12mmØ12mm
    scale℃/°F℃/°F℃/°F
    StandardROHS/CEROHS/CEROHS/CE
    Accuracy1.01.01.0
    stem length63mm or as required  (25mm---200mm)
    Inlet thread1/2", 3/8",3/4" NBP,BSP,or as   required
    typeangle 90
    filled liquidorganic liquid or mercury liquid
    surface treatmentpolishing,galvanzied or painting
    upper bodyaluminium cover,glass thermometer rod
    stem materialbrass (temperature bellow 300℃)
    iron with black oxided/ SS   (temperature over 300℃)
    Temperature Range -50℃--600℃,or as required
    BrandLETIN or OEM
    quality Strong   and durable, high resistance of concussion.
    Usagegas engine of vessel,petrol or natural gas   duct,heating or refrigerating equipment, accurately measurement.
  4. Faith
    Our service is to supply R&D and OEM according to customers'   requirements.
        Our advantage is rich experience and mature technology with CE& ROHS   certificates.
        Our target is to satisfy every customer with best quality and service.
    Introduction
    For more than 25 years experience in making thermometer series,   Yuyao Lantian Electronic Meter Factory specialized in producing capillary   thermometer, V-shaped glass thermometer, bimetal thermometer, digital   thermometer, bbq thermometer, glass thermometer etc. which can be widely used   in HVACR, vessel, petroleum chemical, electronic and household fields.











    Location
    Our factory is located in Yuyao City, Zhejiang Province, China.   It's 1 hour distance from Ningbo and Hangzhou air port, near Ningbo and   Shanghai port.











    Advantage
    1. Certificates: CE& ROHS, passed ISO9001:2008 International   Quality Management System.
        2. R&D and OEM service is available.
        3. Rich experience and mature technology: cooperating with famous companies   in Europe and America.
        4. Popular products: hot selling in Europe, America, Africa, Mid-east, Asia   etc..











    Production Category
    1. Capillary thermometer(Pressure theory): plastic type,   stainless steel type, with flange type.
        2. V-shaped thermometer(glass rod): straight type, 90degree angle type,   vari-angle type, plastic type, stainless steel type.
        3. Bimetal thermometer(Dial& SS case): universal type, radial type,   bottom type.
        4. Household thermometer: BBQ type, oven type, refrigerator type, digital   type, glass type, needle type.
        5. Thermomanometer: capillary type, metal type.
        6. Accessories: cover, glass rod, connection, spring tube.

    V shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometerV shaped glass industrial thermometer
